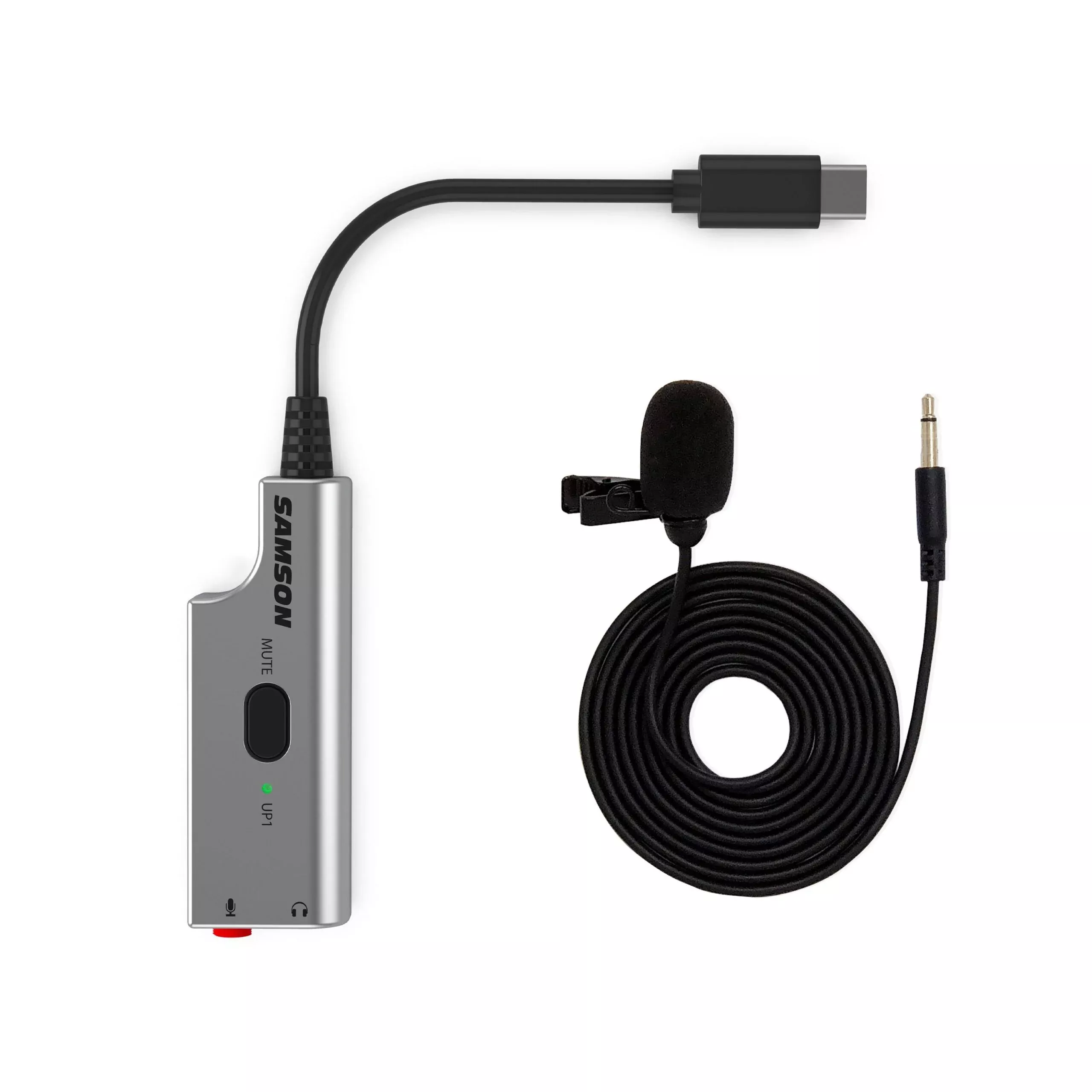

Samson LMU1 Broadcast Lavalier Microphone with USB Adapter
The LMU1 isa lavalier microphone with USB audio adapter bundle designed for contentcreators, journalists, vloggers, streamers and remote workers. Connect directlyto a PC, Mac or Chromebook to capture broadcast quality audio with easyplug-and-play operation.
The LMU1bundle includes a LM8, a low-profile, lavalier microphones with 6.95mm miccapsule. An omnidirectional pickup pattern captures sound evenly in alldirections with no proximity effect or off-axis coloration. The result is clearand articulate vocal reproduction regardless of the position of the capsule tothe sound source. Plus, its lightweight clip design offers low-profile, nearlyinvisible placement on ties, lapels and more.
The UP1 isan analog-to-digital USB audio adapter with a 1/8” (3.5mm) microphone input and1/8” (3.5mm) headphone output. It features a USB Type-C connector and includesa USB C to USB A adapter to connect to any computer.
TechnicalSpecifications
LM8 Lavalier Microphone
Microphone Element
Backelectret condenser
Capsule Dimension
6.59mm
Polar Pattern
Omnidirectional
Frequency Response
50Hz-16kHz
Sensitivity
-45dB 1 V/Pa+/-3dB at 1kHz
Output Impedance
2.2k OHM +/-30%
Max. SPL
125dB
Cable Length
9.8′ (3m)
UP1 USB Adapter
Frequency Response
20Hz to20kHz (+/-1dB)
Signal-to-Noise Ratio
>70dB
Power Requirement
5V
Bit Depth
16-bit
Sample Rate
44.1/48 kHz
Headphone Connector
1/8″(3.5mm)
Microphone Input Connector
1/8″(3.5mm)
