Sennheiser SKM 835-XSW-A Handheld Transmitter Microphone with e835 Capsule

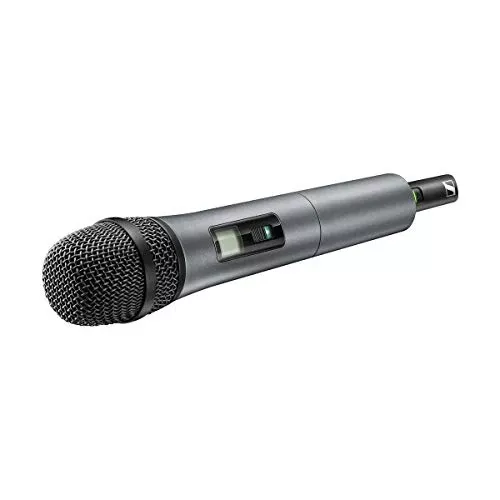

Sennheiser SKM 835-XSW-A Handheld Wireless Transmitter

The Sennheiser SKM 835-XSW-A handheld wireless transmitter combines an e835 dynamic cardioid microphone capsule with an integrated UHF transmitter for live vocals, presentations, and professional speaking applications. This Band A model operates from 548 to 572 MHz and provides a focused cardioid pickup pattern that helps reduce sound arriving from the sides and rear.

Designed for singers, presenters, houses of worship, educational facilities, and live production environments, the SKM 835-XSW-A provides a straightforward way to add a handheld transmitter to a compatible XS Wireless setup. Its integrated mute switch gives performers immediate control from the microphone, while adjustable transmitter sensitivity helps accommodate different voices and performance levels. The rugged ABS housing supports frequent stage and event use without adding unnecessary weight.

The SKM 835-XSW-A delivers an 80 Hz to 16 kHz audio frequency response and 10 mW transmission power. It operates for approximately 10 hours from two AA batteries and allows transmitter sensitivity adjustment from 0 to -30 dB in 10 dB increments. The dynamic e835 capsule uses a cardioid pickup pattern suited to vocal reinforcement where controlled off-axis pickup and dependable handheld operation are important.

Key Features

• Band A UHF Operation: Operates across the 548 to 572 MHz frequency range for compatible XS Wireless applications.
• e835 Dynamic Capsule: Integrated dynamic microphone capsule is designed for clear handheld vocal and speech capture.
• Cardioid Pickup Pattern: Focuses pickup toward the front of the microphone while reducing unwanted off-axis sound.
• Integrated Mute Switch: Allows the performer or presenter to mute the transmitter directly from the handheld unit.
• Adjustable Sensitivity: Provides a 0 to -30 dB adjustment range in 10 dB steps for different input levels.
• Extended Battery Operation: Runs for approximately 10 hours using two standard AA batteries.
• Rugged ABS Housing: Durable enclosure is designed for regular live performance and professional event use.

Technical Specifications

• Brand: Sennheiser
• Model: SKM 835-XSW-A
• Article Number: 507336
• Product Type: Handheld wireless microphone transmitter
• Frequency Range: 548 to 572 MHz
• Transmission Power: 10 mW
• Microphone Capsule: e835
• Transducer Type: Dynamic
• Pickup Pattern: Cardioid
• Audio Frequency Response: 80 Hz to 16 kHz
• Capsule Input Sensitivity: 1.5 mV/Pa
• Transmitter Sensitivity Adjustment: 0 to -30 dB in 10 dB steps
• Power Supply: 2 x AA batteries, 1.5 V each
• Operating Time: Approximately 10 hours
• Housing Material: Rugged ABS
• Dimensions: Approximately 10.2 x 2 inches
• Weight: Approximately 0.5 lb
• Connection: Wireless
• Warranty: 2 years

What’s In the Box

• Sennheiser SKM 835 Handheld Transmitter
