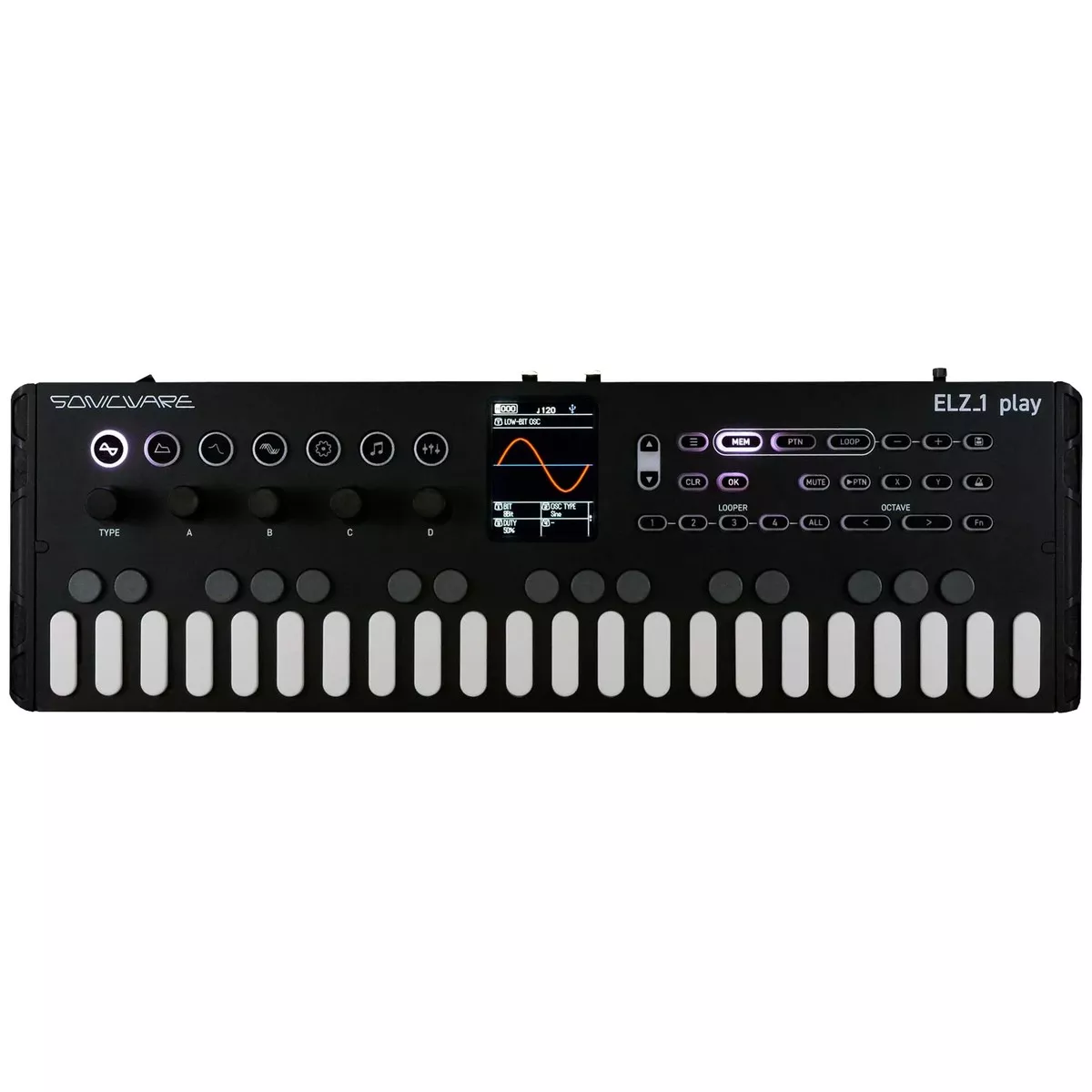

Sonicware ELZ_1 – Portable Synthesizer with Looper

ELZ_1 play has expanded features and interface to take advantage of its unique sound without modifying the original ELZ_1’s core sound engines & effects.

Features:

17 Distinctive Synth EnginesUnlike Anything You’ve Ever Heard

33 Effects to Elevate Your SoundFrom Soothing to Striking

Flexible 4-Track LooperLayer, Loop, and Remix with Ease

Instrument RedefinedVelocity-enabled keyboard, Built-in stereo speakers and more

Specifications:

Dimensions

– 399mm (W)133mm (D)50mm(H)

– 15.7″ (W)5.24″ (D)1.97″(H)

Weight

– about 1,3kg

– about 2.9lbs

Outputs

– Stereo line outputs (standard L/R phone jacks)

– Headphone output (stereo mini jack) / SYNC OUT

– Speaker

Inputs

– AUX IN (stereo mini jack) / SYNC IN

Power

– 5V DC (center positive, 5.5mm (outer), 2.1mm (inner) jack)

– 4 AA batteries

*USB adapter not included.

Use a USB AC adapter that has an output current of at least 2000 mA.

Never use USB power supply such as USB quick chargers that may output more than 5V for a short period of time, as it will destroy the internal components of the ELZ_1.

Also, do not connect the unit to your PC or Mac with the included USB power cable.

USB functions

– Firmware updates

– USB MIDI device functions

– USB HOST mode

ELZ_1 can connect to MIDI device / DIN-MIDI interface via OTG cable ( USB HOST cable ) when you use MIDI HOST mode.

*USB-MIDI interfaces that have been confirmed to work with ELZ_1 MIDI HOST MODE

Synthesizer engines

– FM SYNTH

4 operators with 31 algorithms, 32-bit floating point procesing

– 8BIT WAVE MEMORY SYNTH

waveform editing

– 8BIT WAVE MEMORY SYNTH( MORPH )

morphing mode

– 8BIT WAVE MEMORY SYNTH( FM MODE )

2 operators, 8bit FM mode

– DNA EXPLORER

extract and generate waveform DNA from audio

– SiGRINDER

granular synthesizer engine

– STANDARD OSC

32-bit floating-point processing high resolution oscillator

– LOW-BIT OSC

2 ~ 8 bit variable low-bit oscillator

– CUSTOM OSC

Choose 2-waveform / period of cycles

– MASKED NOISE

Noise oscillator

– SAND FLUTE

extract and generate tone from noise

*6Voice Polyphonic

Envelopes

– ADSR

– ADSR(curve)

– ADS-RA-R

– ADS-RA-R(curve)

Filters

– LPF-6, LPF-12,

– HPF-6, HPF-12,

– BPF,

– Peaking EQ,

– LO EQ,

– HI EQ,

– NOTCH

Effects

– Overdrive, Distortion, Fuzz,

– Chorus, Vibrato, Phaser, Flanger, Tremolo, AutoPan, RingModulator, AutoWah,

– StereoDelay, TapeEcho, ReverseDelay, PingPongDelay

– Room, Hall, Plate, Custom Reverb

Arpeggiators

– Up, Down, UpDown, DownUp, Up&Down, Down&Up, Random, Play Order

Sequencer

– 64-steps x 6-voices

– 128 patterns

– Real-time and step recording

– Notes between steps can be tied

– Metronome

Sync with external clock signals:

By connecting a device that outputs a clock pulse of less than 5V*, which includes KORG volcas and Teenage Engineering Pocket Operators, to the ELZ_1 AUX IN jack, their step sequencers and arpeggiators can be synchronized.

*Synchronization with devices that exceed 5 V, including modular synths and rhythm machines, is possible by using a commercially-available attenuator

Accessories

– USB power cable*

– Letter

– Start Up Guide
