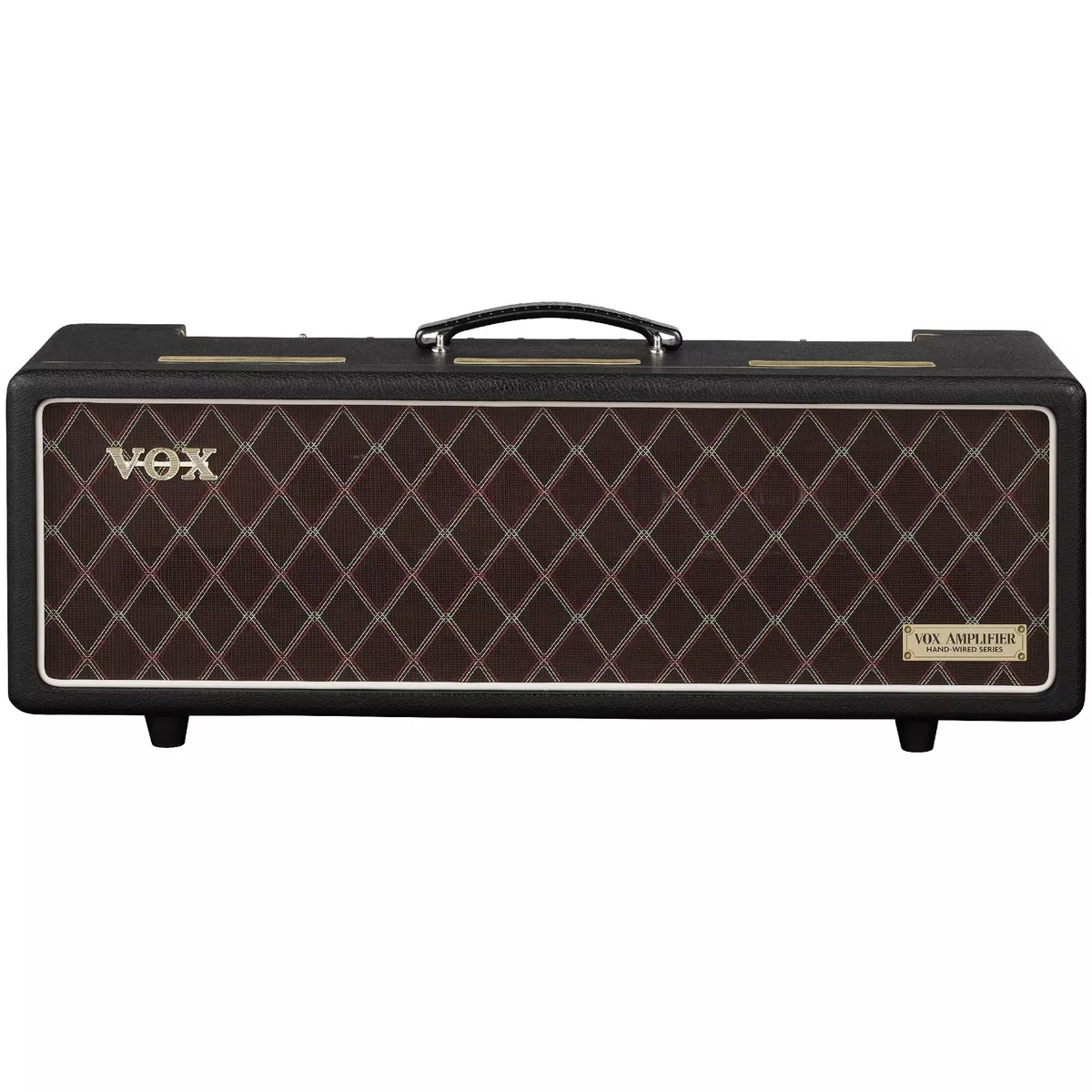

Vox AC30HWRH Handwired 30w Head

Vox AC30HWRH Handwired 30w Head

The Vox AC30HWRH Hand-Wired Head is a premium all-tube guitar amplifier head built with hand-wired circuitry for classic British tone and authentic vintage responsiveness. Its part of Voxs Hand-Wired series, which aims to recreate the character and feel of the original 60s AC30 amps with modern features and reliability.

Key Features

• All-Tube Design: Uses four EL84 power tubes, multiple preamp tubes (ECC83/12AX7 and ECC81/12AT7), and a GZ34 rectifier for full, dynamic tube tone.

• Hand-Wired Circuitry: Point-to-point wiring on turret boards for rich harmonics and vintage style signal flow.

• Two Channels:

  • Normal Channelwarm mids with a Bright switch for added top-end sparkle.

  • Top Boost Channelclassic Vox chime with Treble, Bass, and Volume controls.

• Master Volume & Controls: Master volume can be removed from the signal path for purer tone at high settings.

• Tube-Driven Spring Reverb: Built-in reverb with Level and Tone controls and footswitchable bypass.

• FET-Buffered Effects Loop: Keeps pedals sounding clear and natural.

Specifications

• Output Power: 30 W RMS into 8or 16loud enough for gigs with touch-sensitive breakup when pushed.

• Tube Complement:

  • Preamp: ECC83/12AX74, ECC81/12AT71

  • Power: EL844

  • Rectifier: GZ341

• Inputs:

  • Normal and Top Boost inputs (High and Low for each)

  • Footswitch & Return jacks

• Outputs: Two speaker output jacks and a Send jack.

• Dimensions: ~27.8″10.35″11.9″ (WDH)

• Weight: ~43.4 lb / 19.7 kg

• Included: Power cable, speaker cable, owners manual, and VFS1 footswitch (for reverb control).

Tone & Performance

• Vintage British Voice: Known for that jangly, bell-like top end and warm midrangeclassic Vox chime.

• Responsive Dynamics: Touch-sensitive feel that responds well to playing dynamics and guitar volume changes.

• Studio & Stage Ready: Enough headroom for clean tones, with natural breakup when pushed.
